Escalator Design

Model Type
Model NS-600 NS-800 N1000
Site Indoor / Outdoor
Step width(mm) 600 800 1000
Capacity 4500 6750 9000
Inclination 30 or 35
Vertical 1.0m~7.5m
Speed 30m/min (0.5m/s)
Power 380V, 50Hz
Lighting 220V, 50Hz

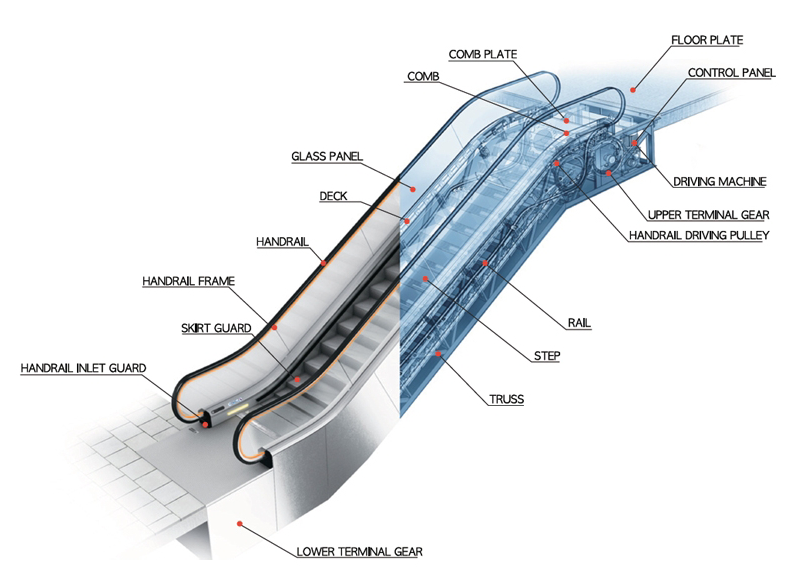

Specification
Handrail Synthetic rubber / Black color
Other color
Handrail guide rail Hairline Stainless steel
Balustrade Tempered safety glass
Stainless steel
Linner and outer cover deck Hairline Stainless steel
Skirting Hairline Stainless steel
Step Stainless steel / Black color
Comb Synthetic resin / Yellow color
Landing plate Etched Stainless steel

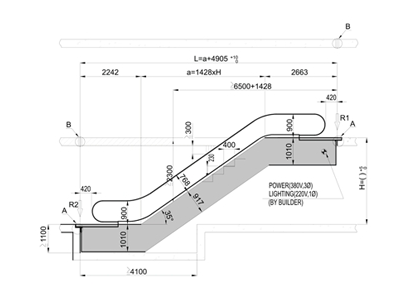

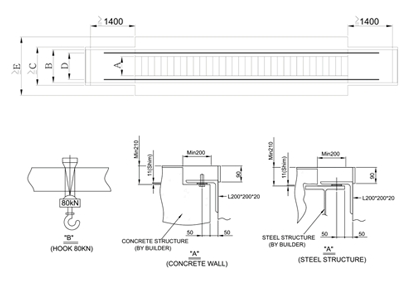

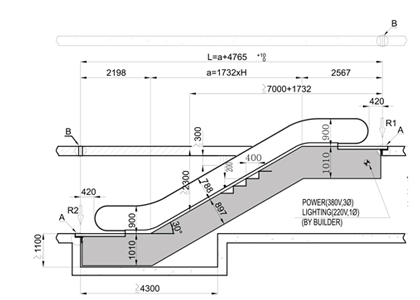

Dimensions
Model NS-600 NS-800 NS-1000
STEP width A 600 800 1000
Outside width B 1140 1340 1540
Building opening C 1200 1400 1600
Handrail width D 838 1038 1238
Building opening E 1838 2038 2238
